CONMOLY / ENGINEERING & CONNECTIVITY
High-performance cable solutions engineered for reliable signal transmission across demanding environments.
Browse CM product series, configuration options and reference specifications. Final specifications and availability are confirmed during enquiry.

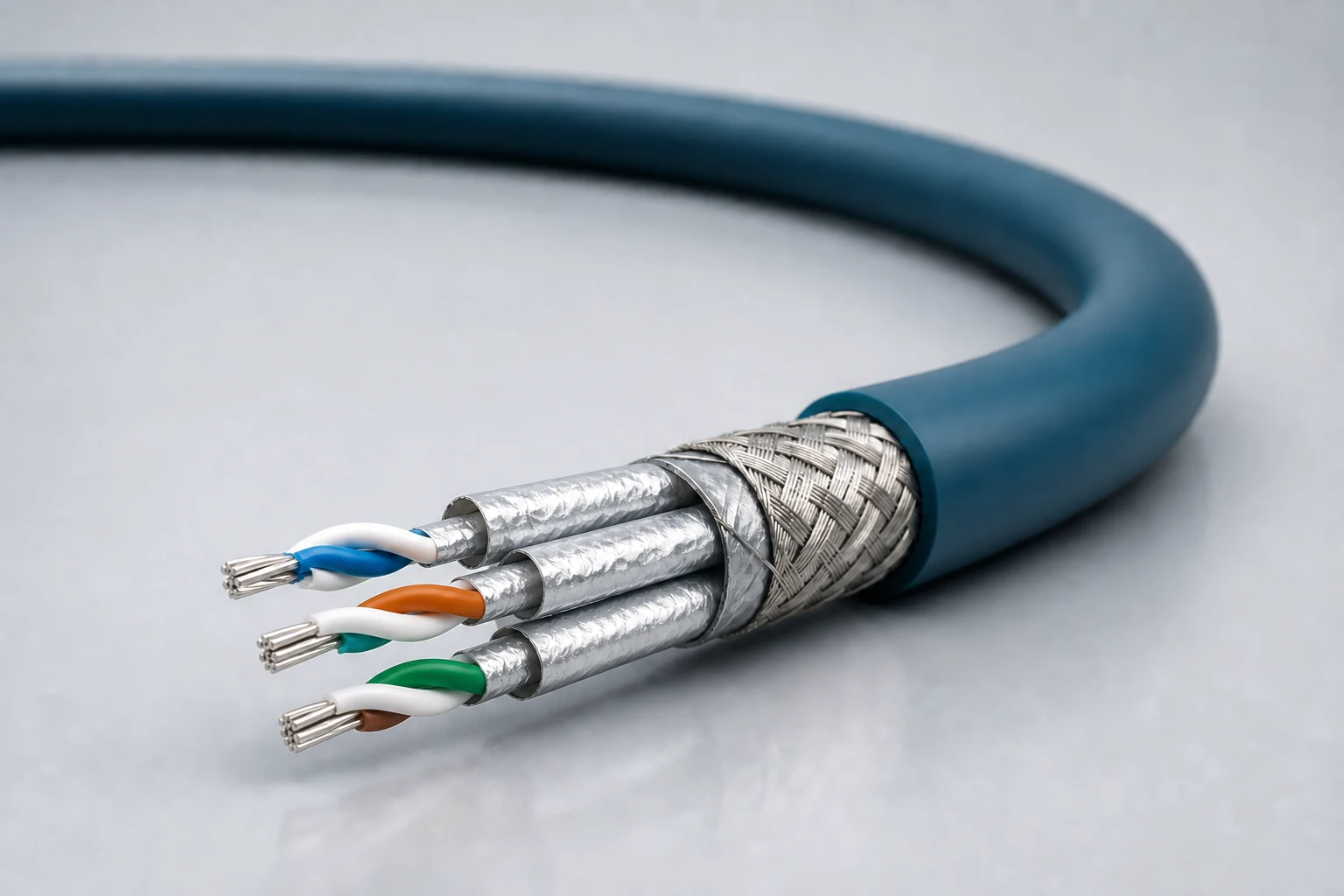

Reference configuration: Controlled-impedance interconnects for avionics, mission equipment, high-speed vision and precision industrial networks, spanning Cat 5e, Cat 6A and Cat 8 directions with insertion loss, return loss, crosstalk and skew managed as a complete channel.
View specifications

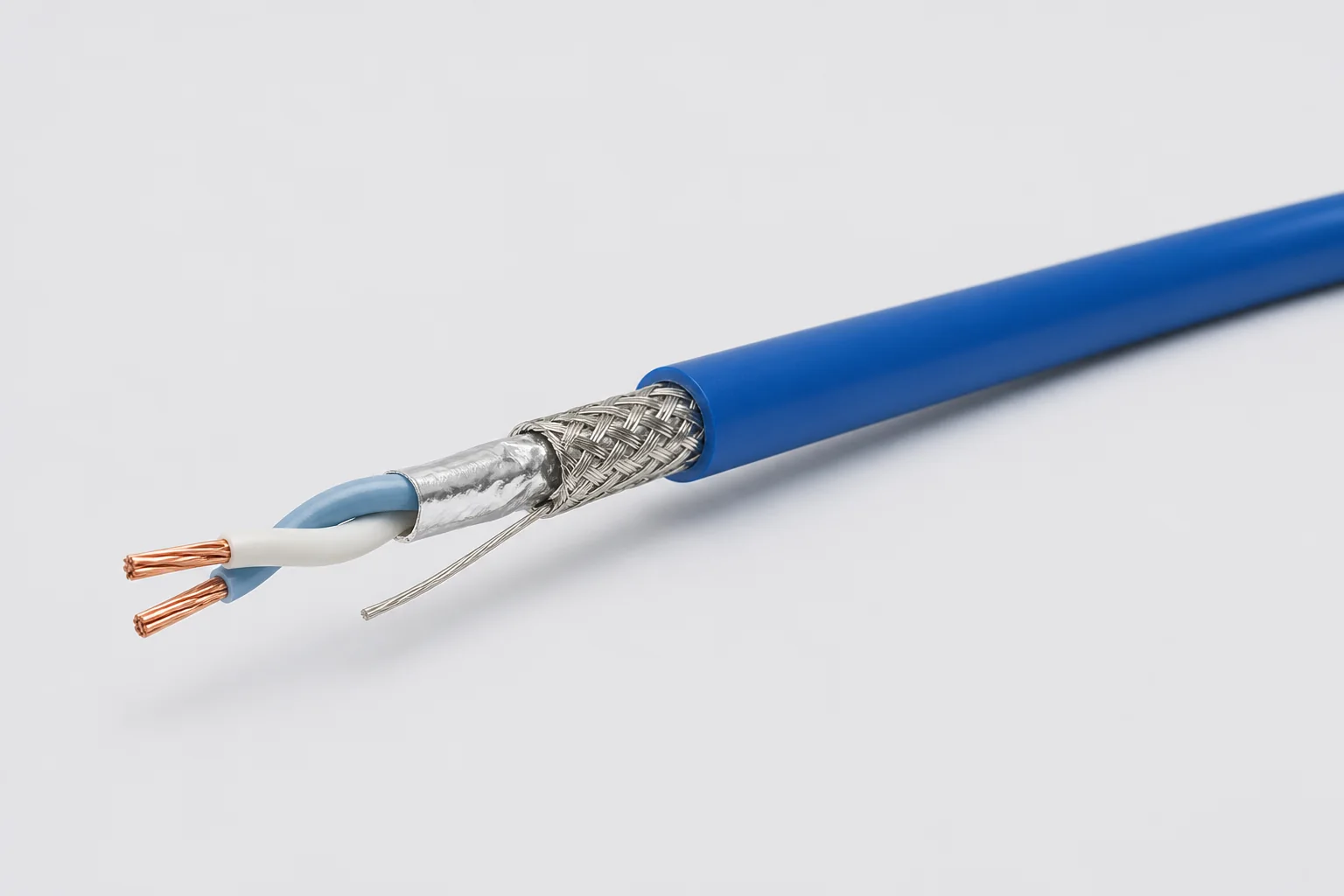

Reference configuration: 100-ohm single-pair shielded cable for aerospace, vehicle and precision-equipment differential links through 1 GHz, using controlled twist, foil, braid and drain paths to manage impedance, common-mode noise and wide-temperature reliability.
View specifications

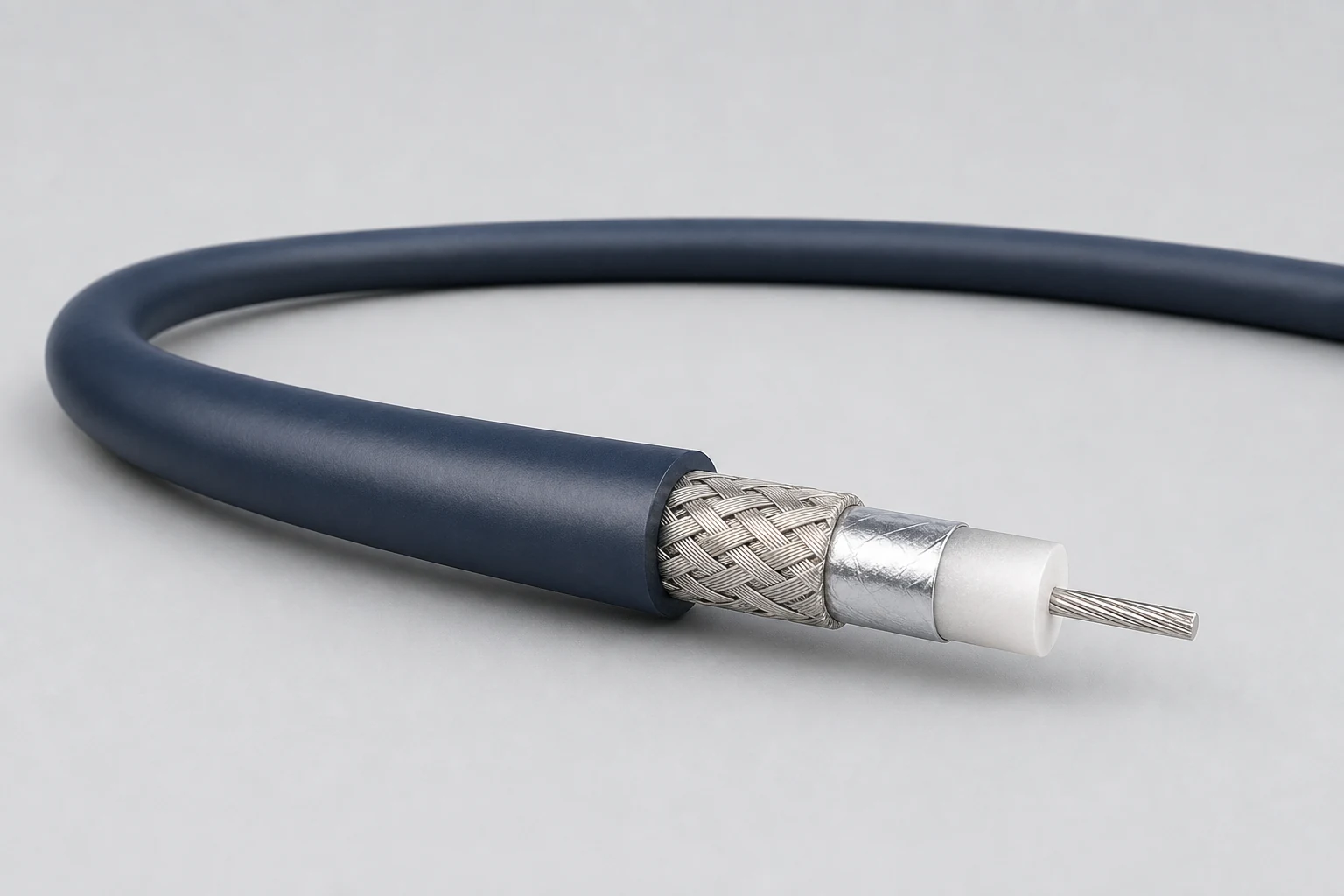

Reference configuration: Precision concentric transmission paths for video, timing, instrumentation and sensitive single-ended signals, spanning 50- and 75-ohm directions with frequency, loss, shielding and connector transitions defined as a complete assembly.
View specifications

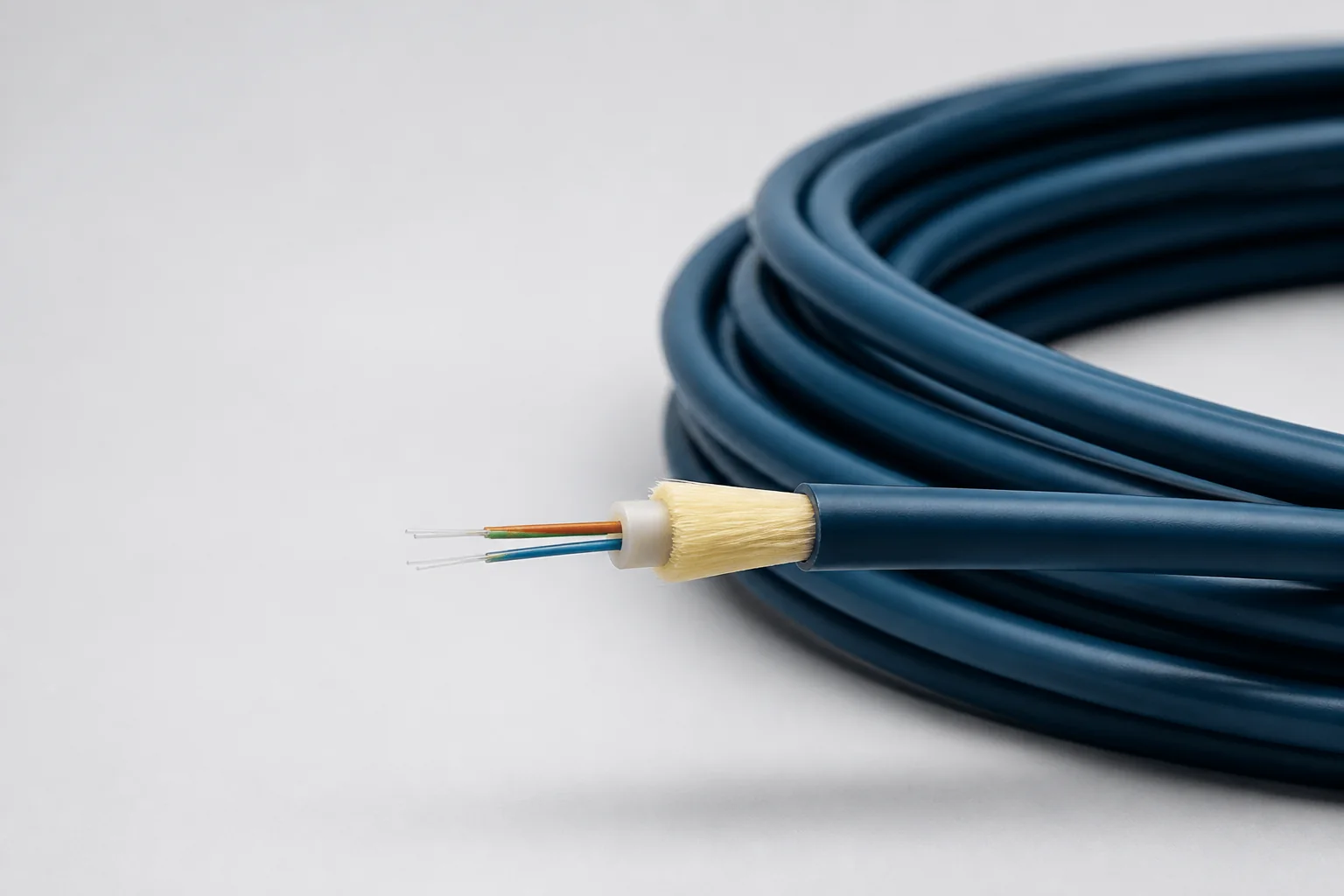

Reference configuration: Lightweight fiber-optic cable for aerospace and defense high-bandwidth interconnects, spanning singlemode and OM1–OM5 multimode directions through 100 Gb/s with PFA, FEP or PEEK jackets and buffered strength systems controlling optical loss, microbend and wide-temperature protection.
View specifications

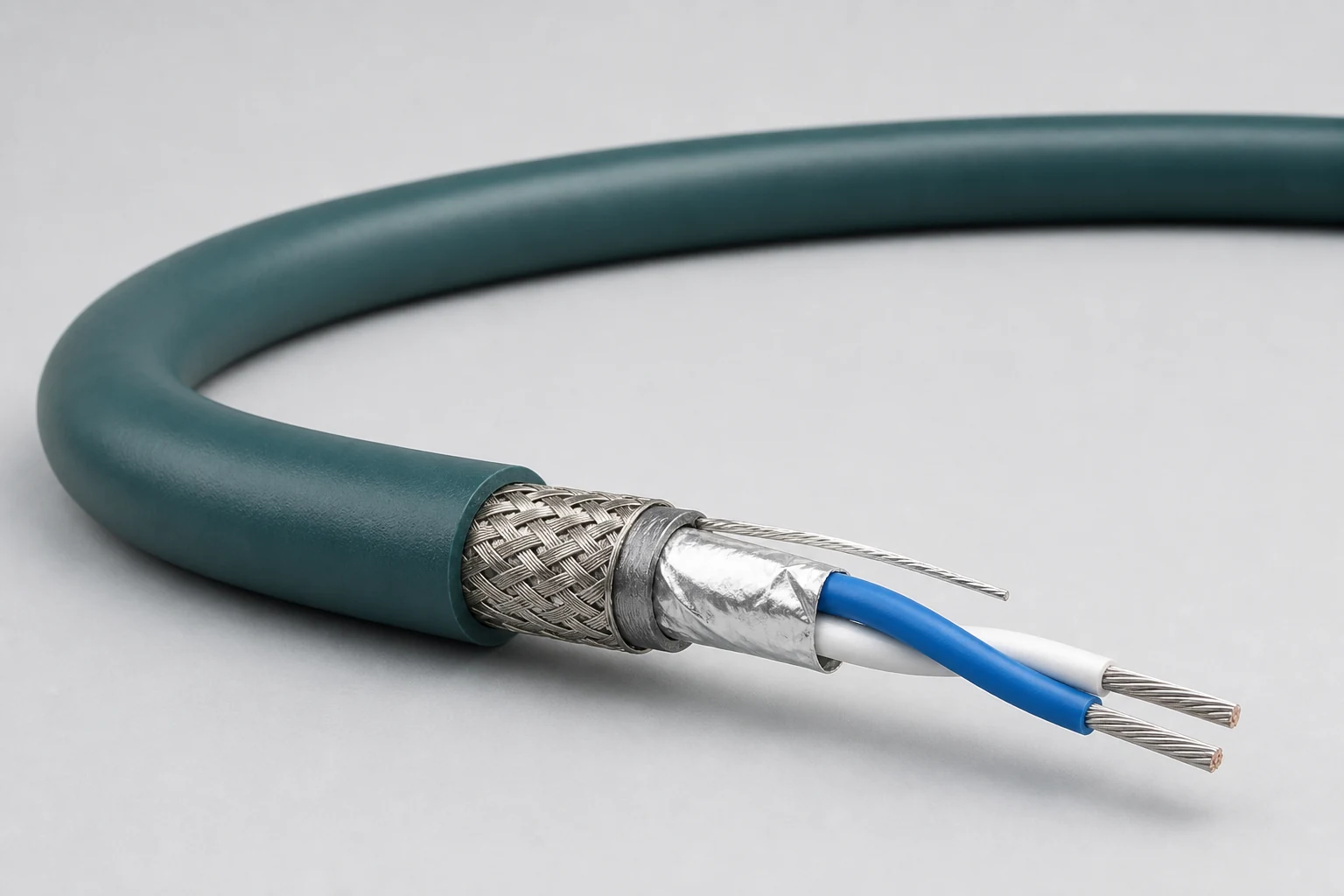

Reference configuration: 120-ohm controlled shielded twisted-pair links for aerospace, vehicle and industrial control networks, defined around CAN / CAN FD topology, common-mode noise, termination, node count and rugged routing.
View specifications

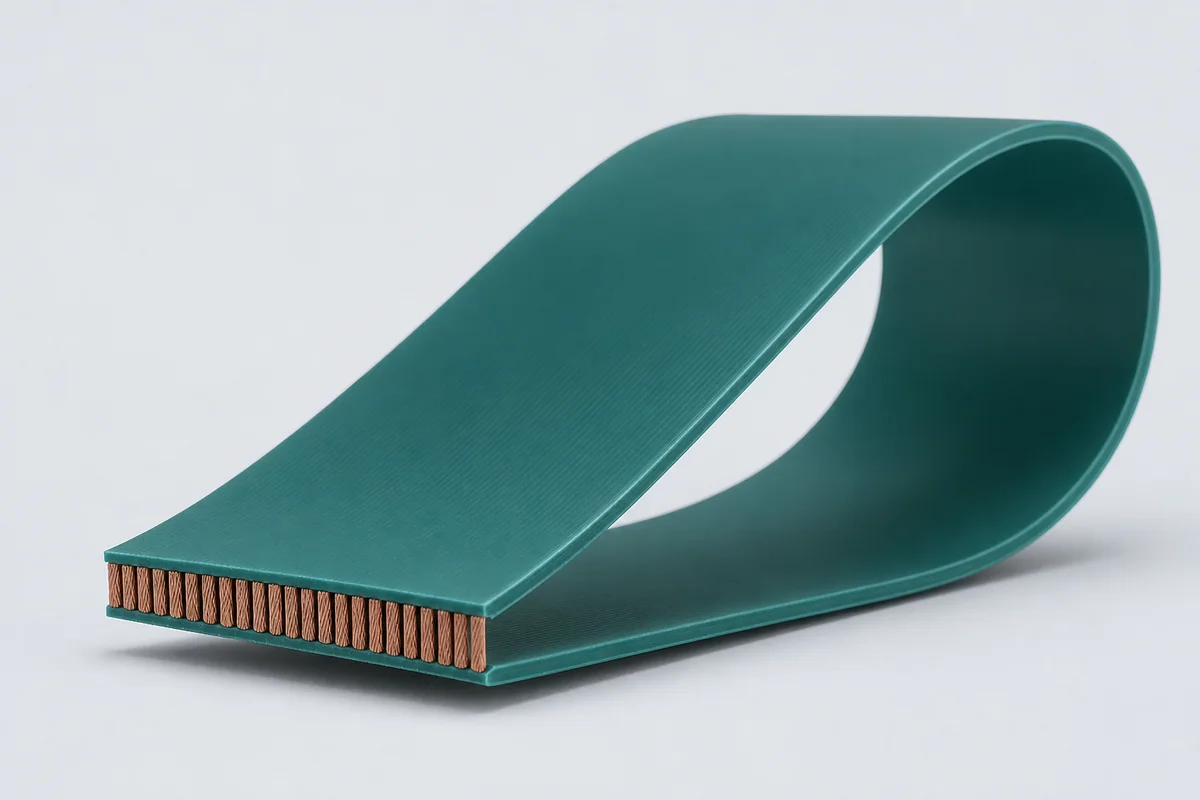

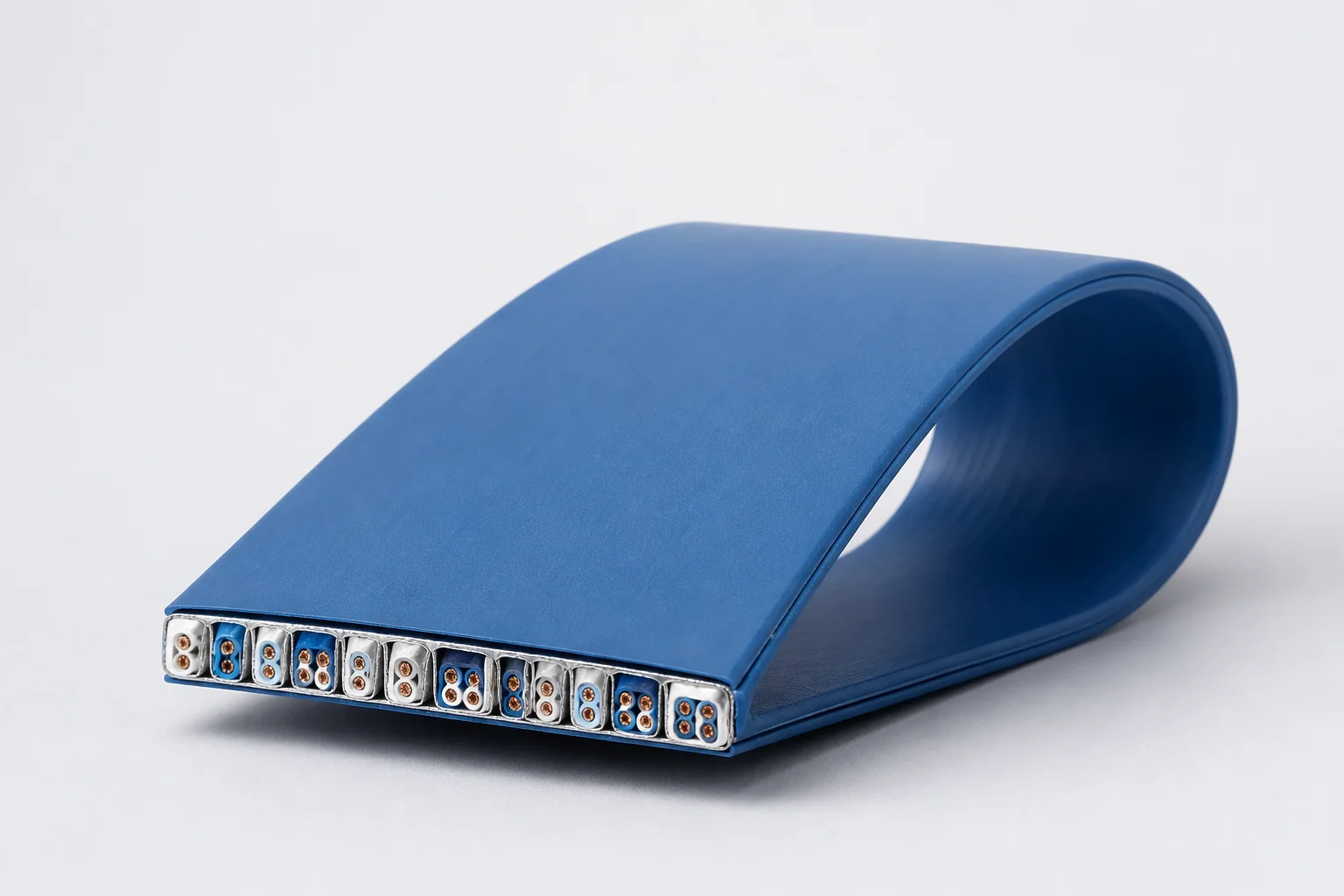

Reference configuration: High-speed flat data cable for semiconductor and precision-motion equipment, supporting directions through 1 GHz and Ethernet, FireWire, USB and CoaXPress with more than 10 million flex cycles at a 50 mm dynamic bend radius and an ISO Class 1 cleanroom direction.
View specifications
Reference configuration: Parallel low-profile constructions for repeated planar motion, combining compact routing with conductor-position control, low internal stress and equipment-specific termination.
View specifications

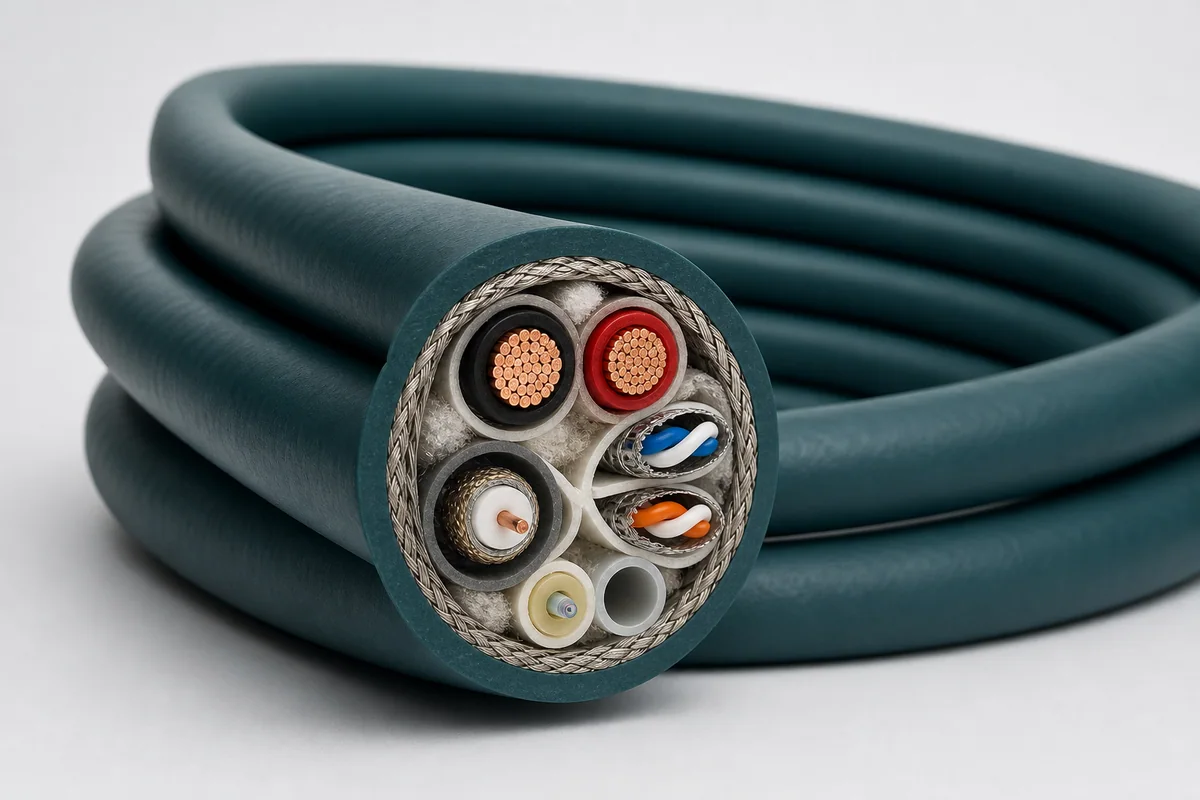

Reference configuration: Signal, power, coax, fiber, pneumatic or fluid units combined inside one round jacket to simplify routing on multi-axis motion platforms and harsh equipment.
View specifications

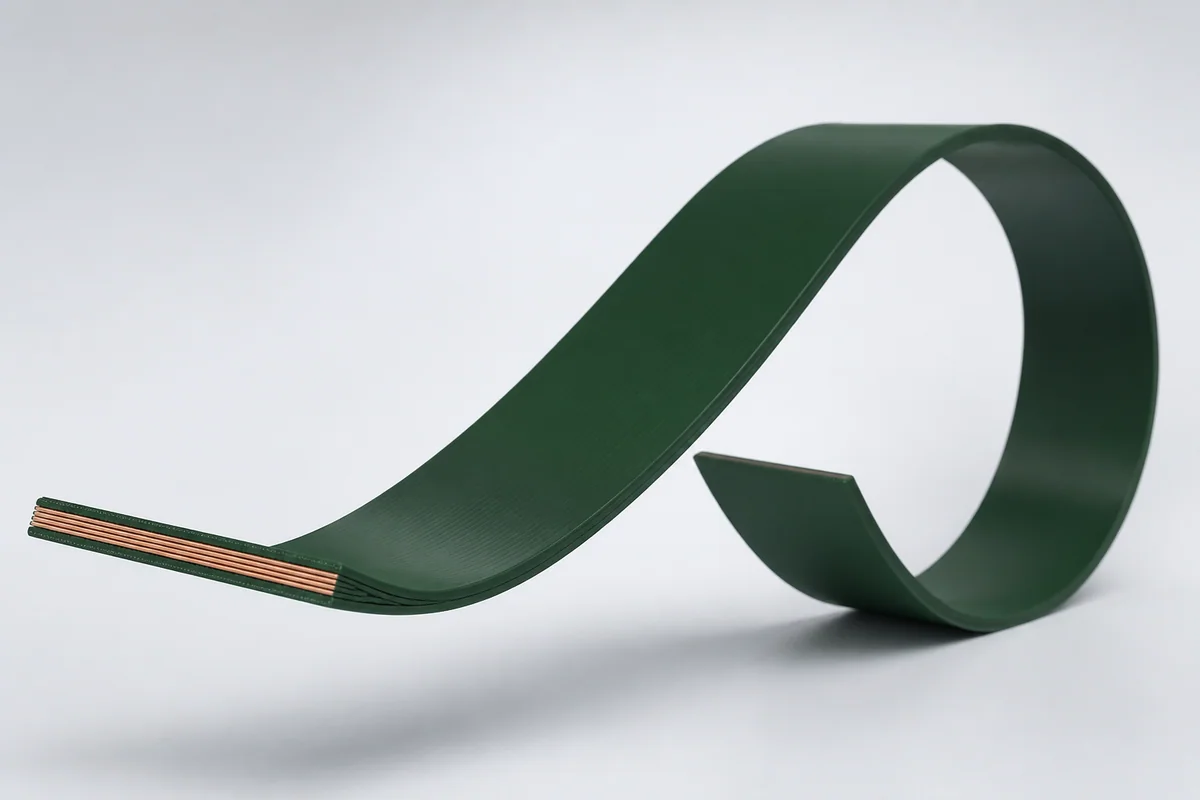

Reference configuration: Lightweight flat self-supporting cable direction for replacing conventional cable carriers in clean motion platforms, reducing vibration, particles, occupied volume and maintenance complexity.
View specifications

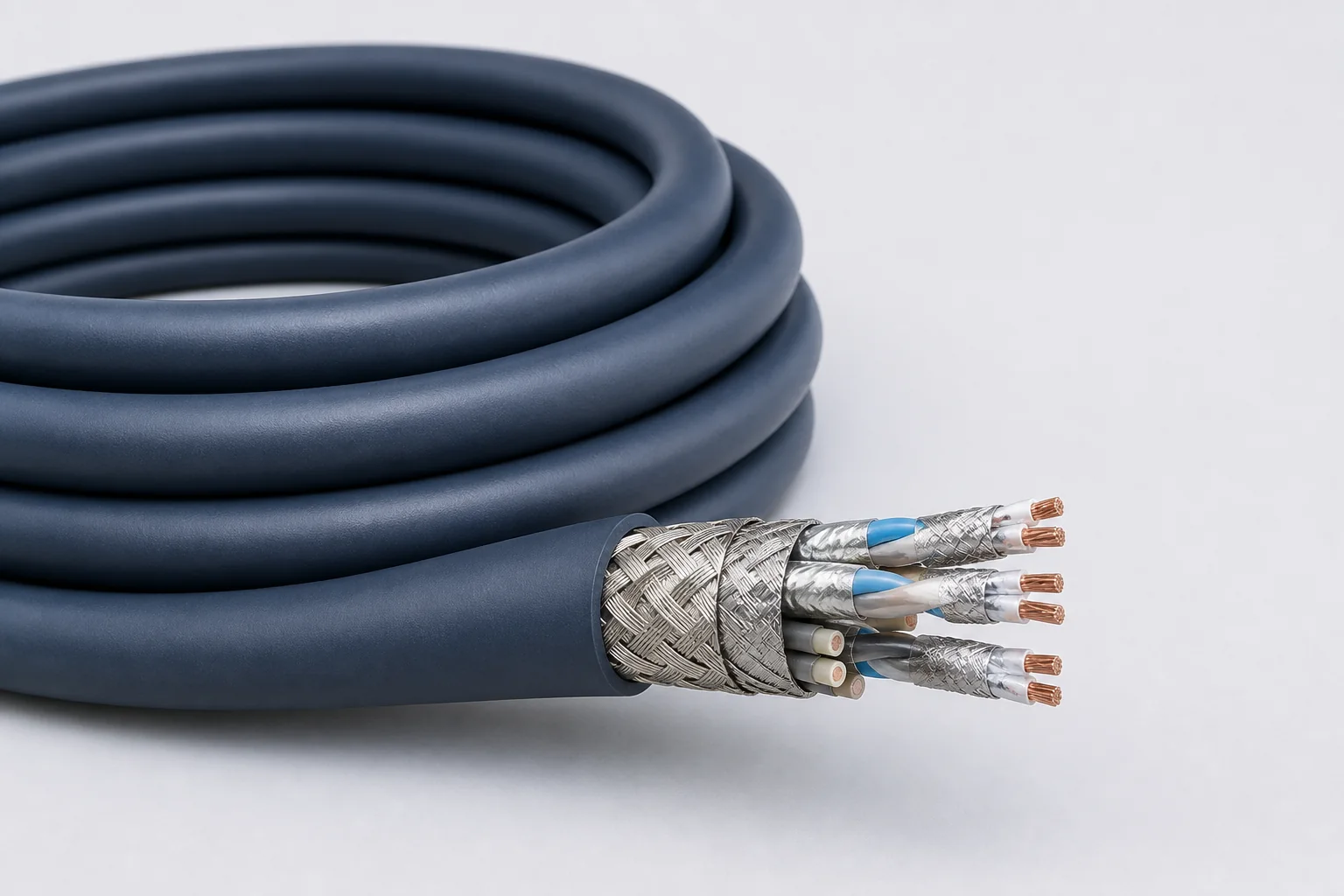

Reference configuration: 24 AWG single-link digital-video interconnect for aerospace and defense displays, controlling its 100-ohm differential channel, insertion loss, pair-to-pair skew and intra-pair skew from −65 to +200 °C in demanding EMI environments.
View specifications

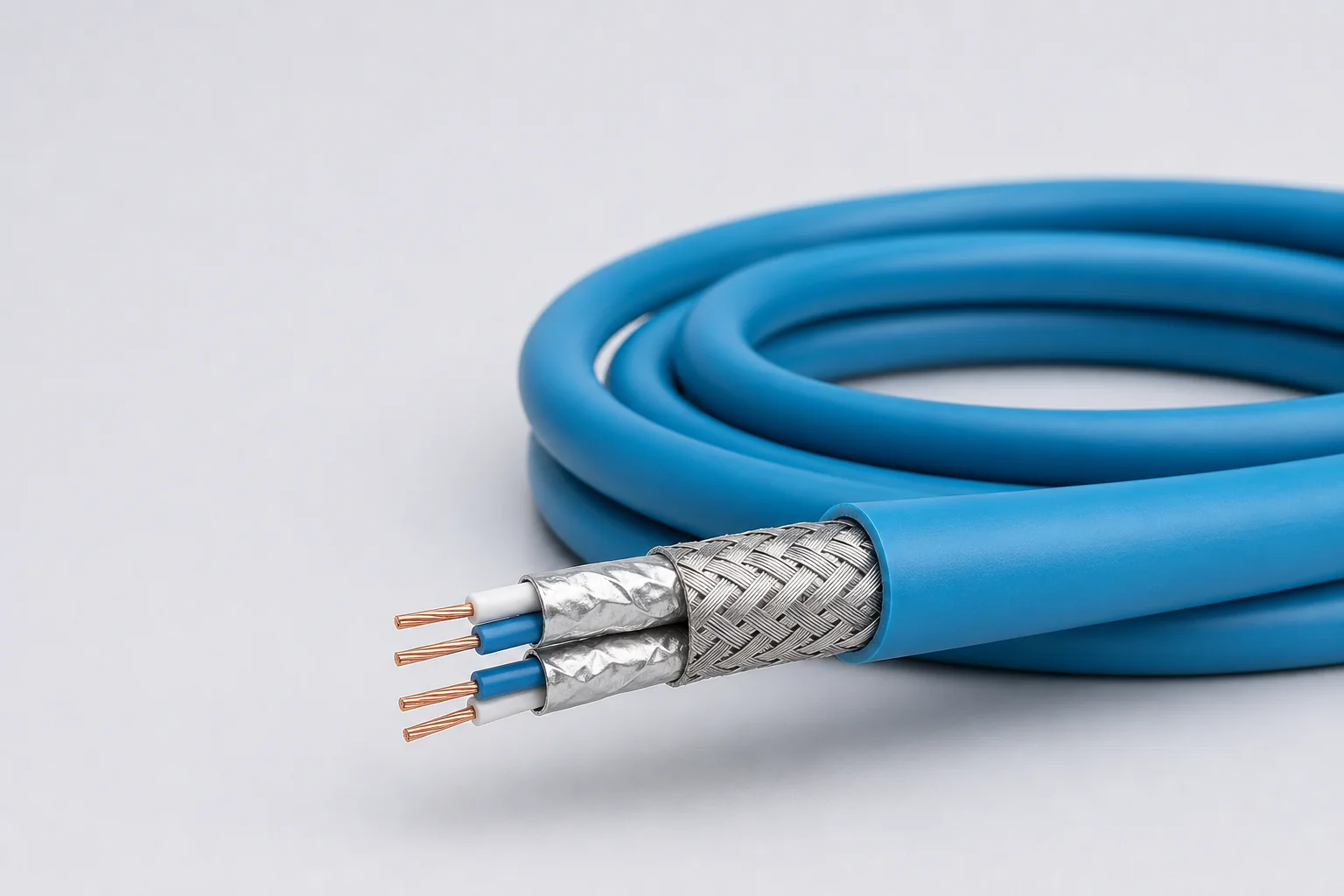

Reference configuration: 26 AWG, 150-ohm differential copper cable for reliable airborne and defense box-to-box links through 1.625 GHz, using 3.0 ps/m intra-pair skew and wide-temperature shielding to preserve serial-channel integrity.
View specifications

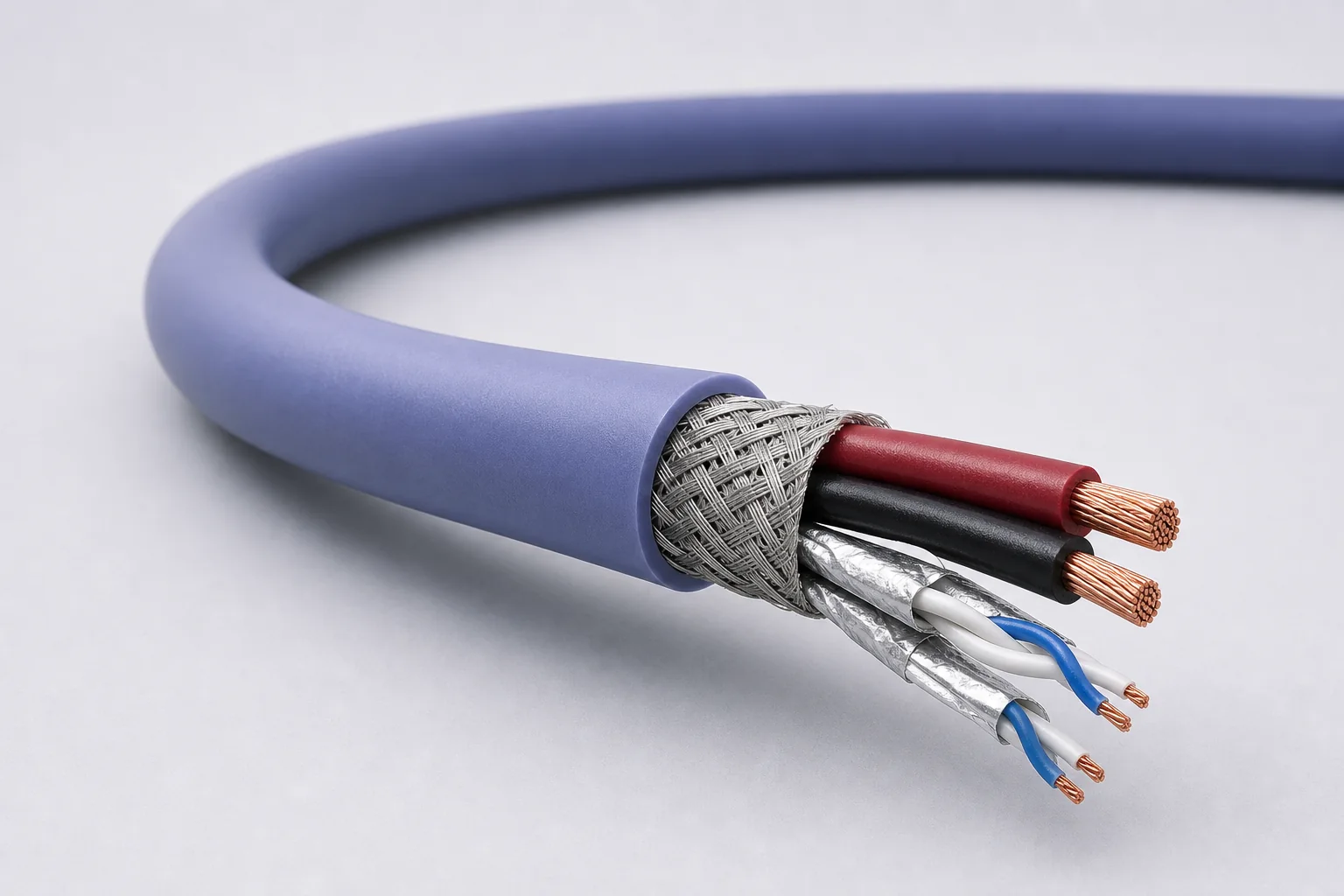

Reference configuration: 110-ohm data-and-power cable for IEEE 1394b / AS5643-class airborne and vehicle networks through 400 Mb/s, with 22, 24 and 26 AWG directions that balance voltage drop, mass and routing space.
View specifications

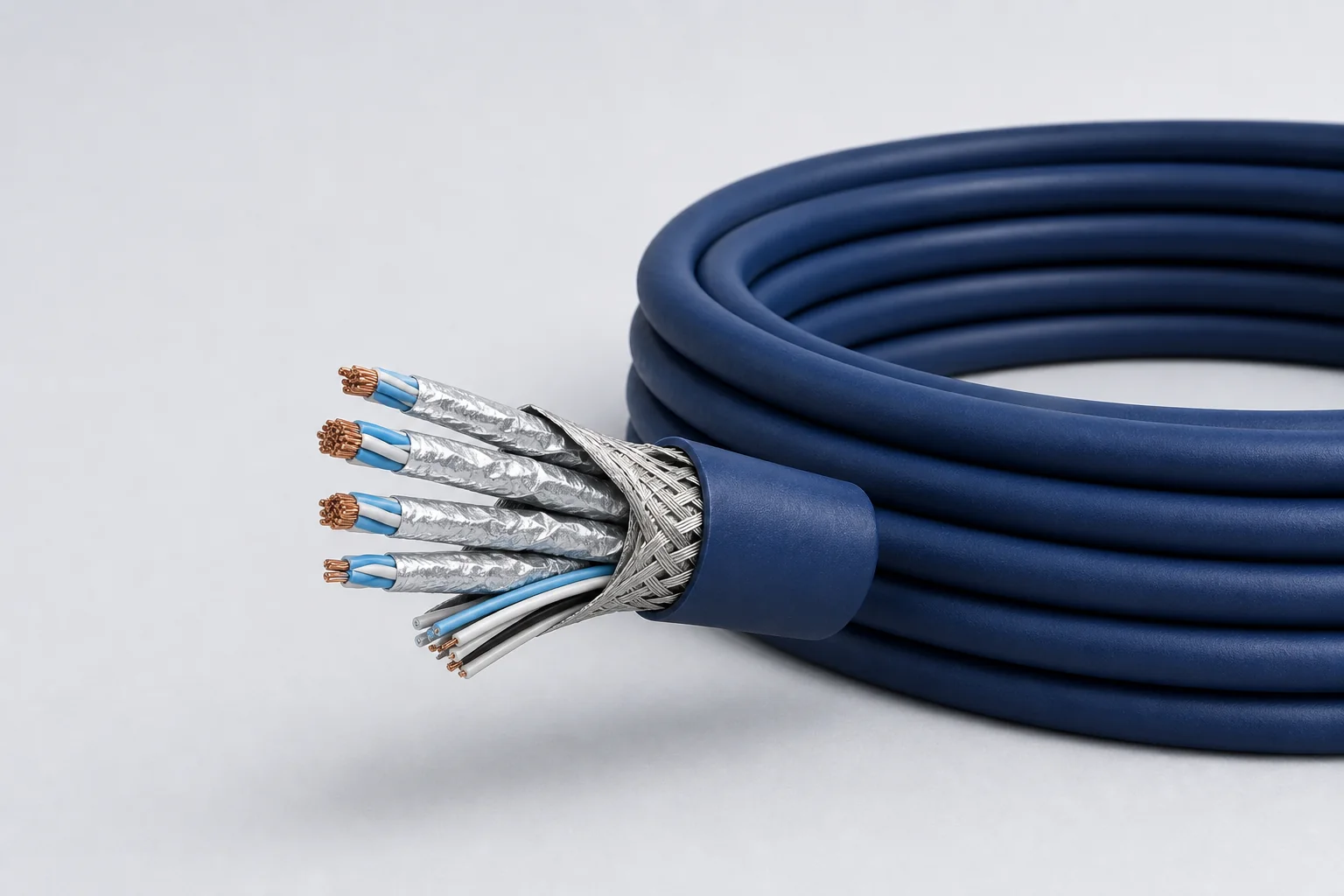

Reference configuration: Complete HDMI interconnect for aerospace and defense HD audio/video systems through 18 Gb/s, controlling 100-ohm impedance, skew and wide-temperature reliability across four high-speed differential pairs, auxiliary conductors and an overall shield.
View specifications

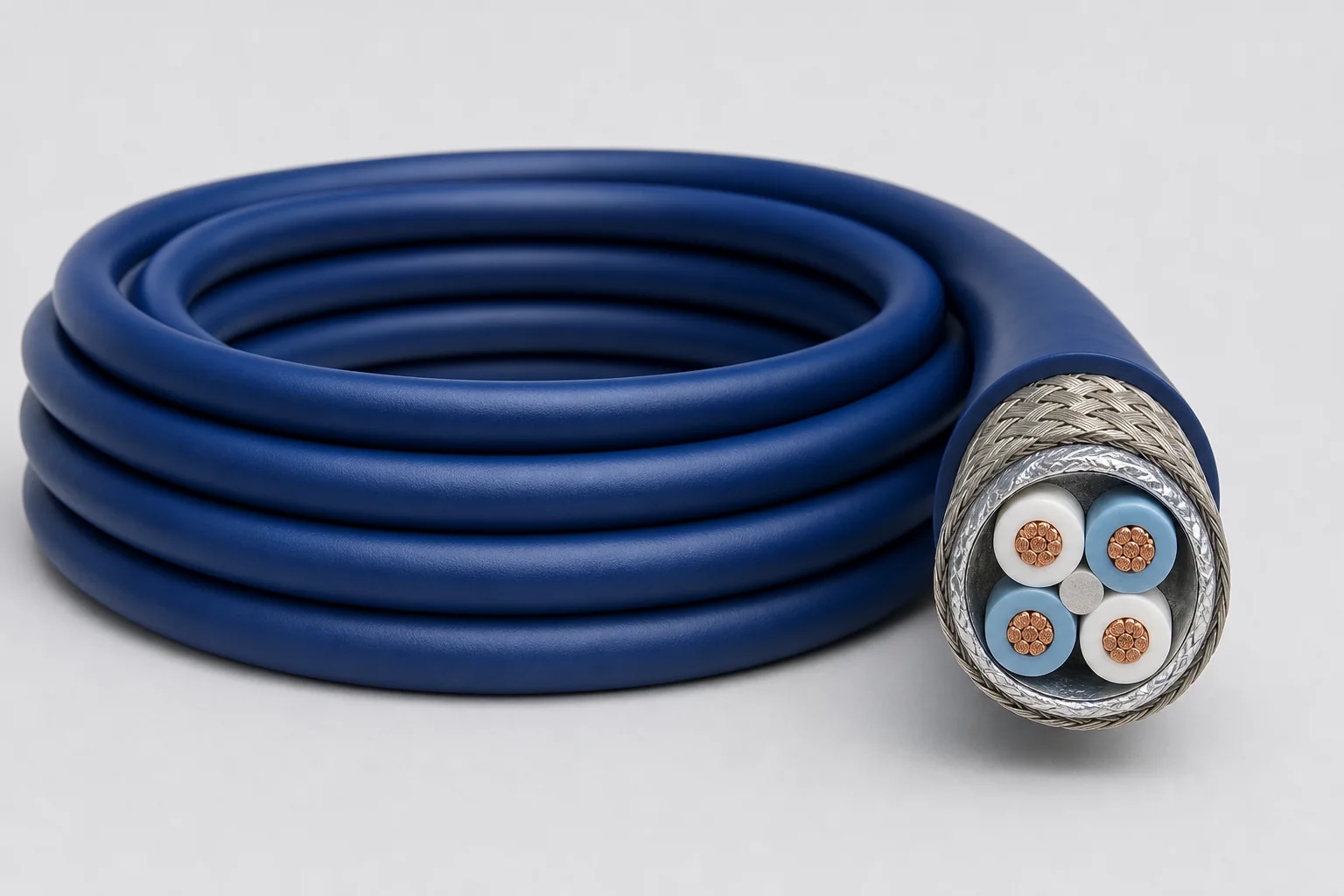

Reference configuration: Symmetrical quad geometry organizes two balanced differential signals in one cable across 24, 26 and 28 AWG directions through 1 GHz, with a compact cross-section delivering about 40% size reduction and up to 30% lower mass.
View specifications

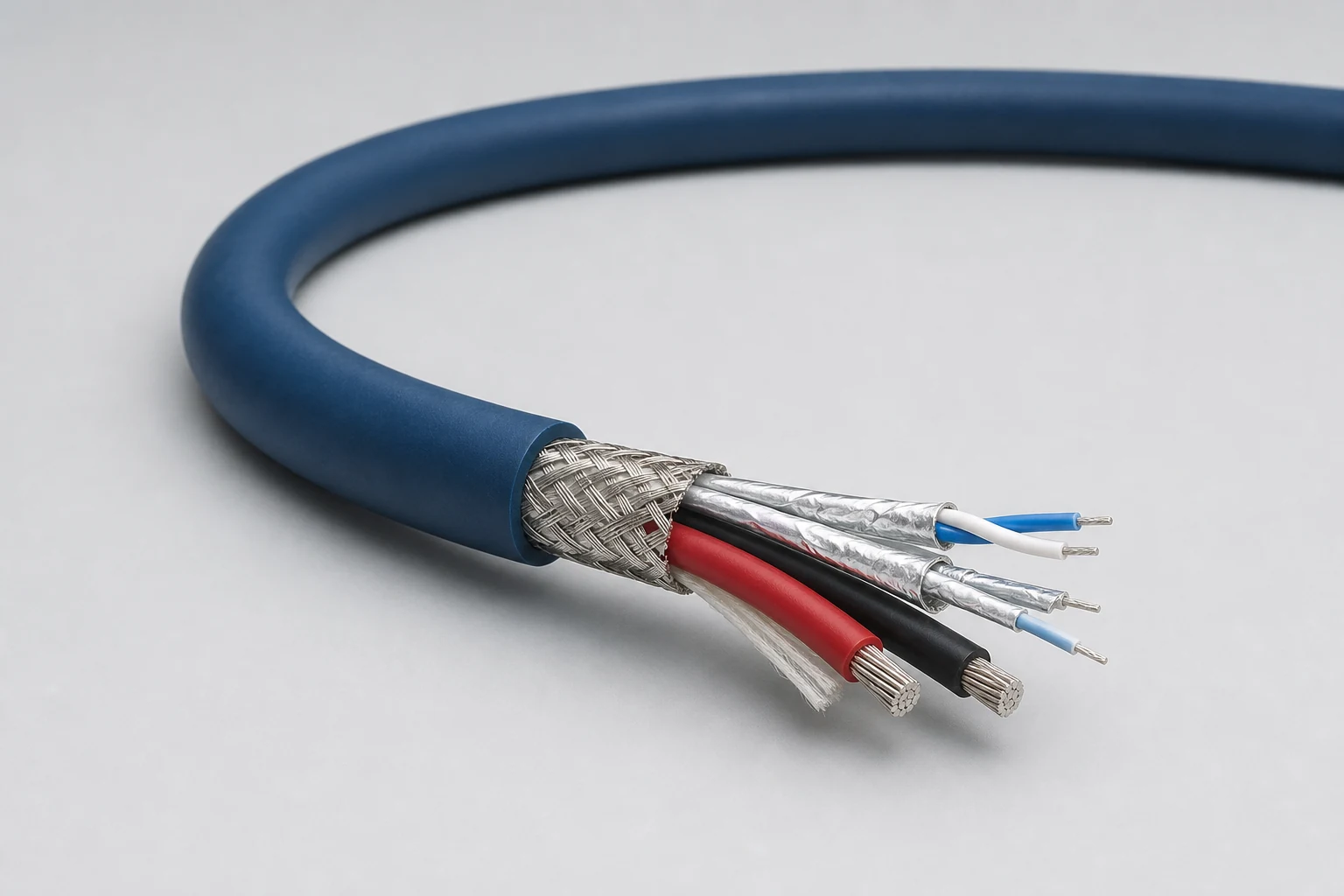

Reference configuration: USB data-and-power interconnects for aircraft, vehicles and mission equipment through 10 Gb/s, using 90-ohm high- and low-speed differential pairs with voltage drop, skew, shielding and wide-temperature termination managed as a complete channel.
View specifications

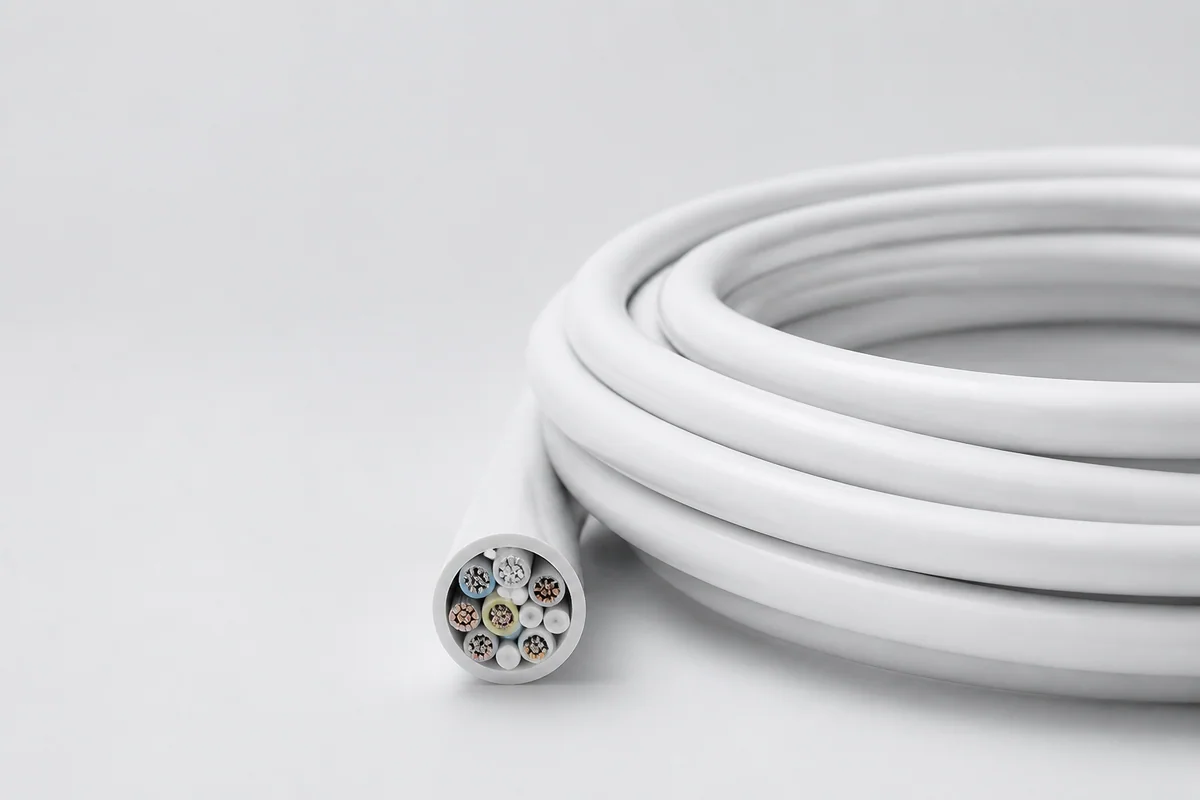

Reference configuration: ISO Class 1 static round cable for lithography and precision semiconductor tools, combining signal and power cores while controlling particles and vacuum outgassing.
View specifications

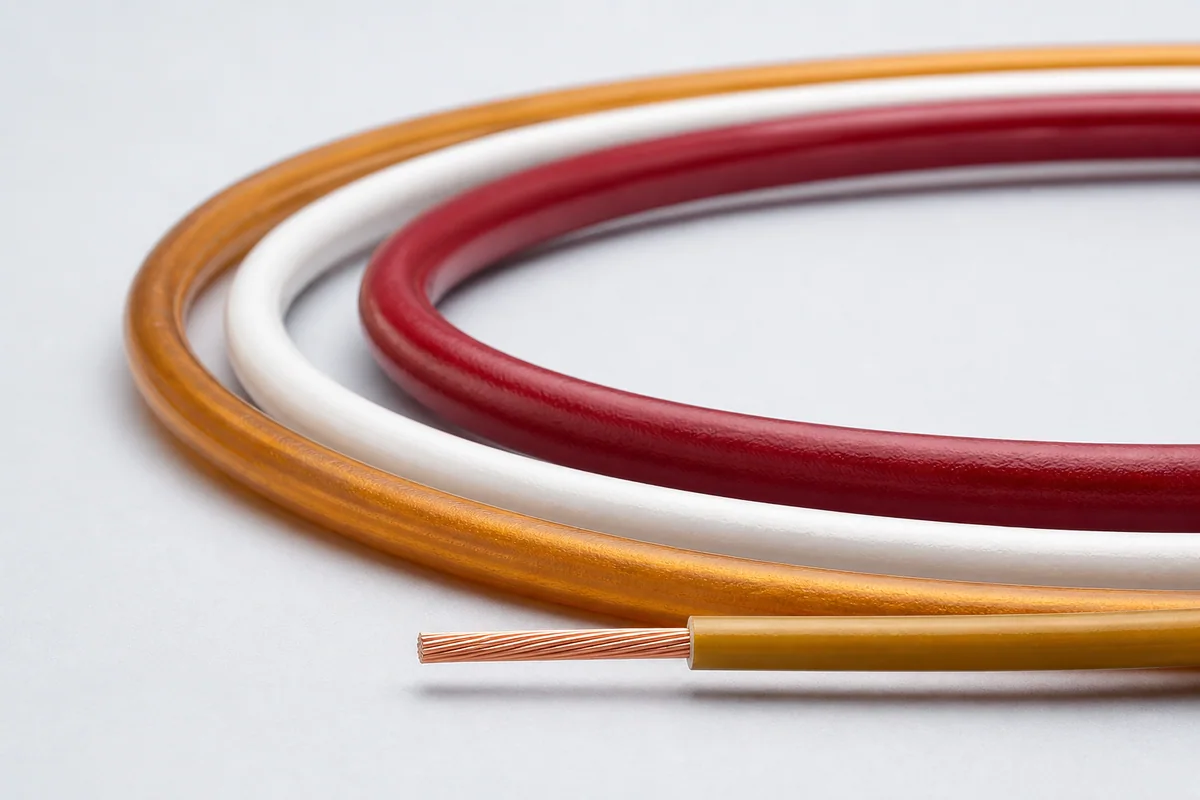

Reference configuration: High-strength thin-wall fluoropolymer insulation provides a 300 °C thermal-class direction and hydrolysis resistance for downhole windings, sensors and high-temperature hook-up wiring.
View specifications

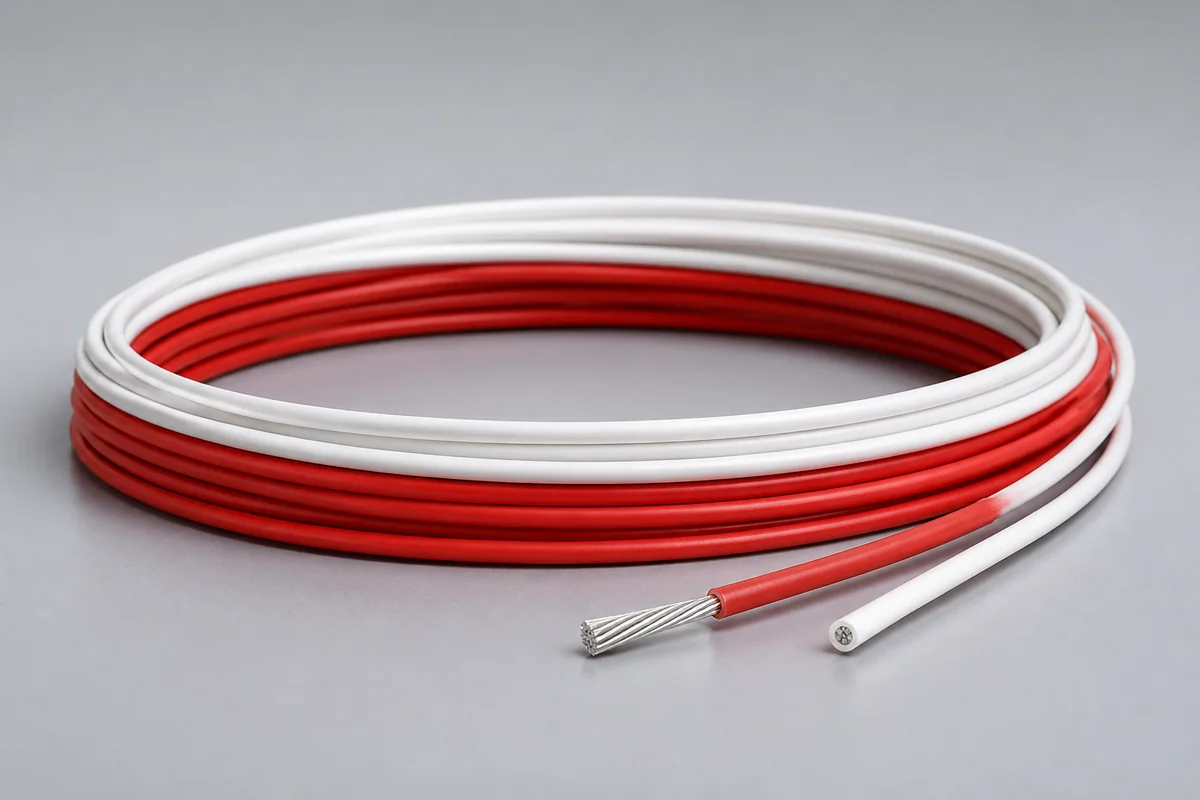

Reference configuration: Temperature-resistant, chemically inert and abrasion-resistant engineered fluoropolymer insulation supports stable high-voltage, lightweight and long-term material reliability in current and next-generation aircraft electrical systems.
View specifications

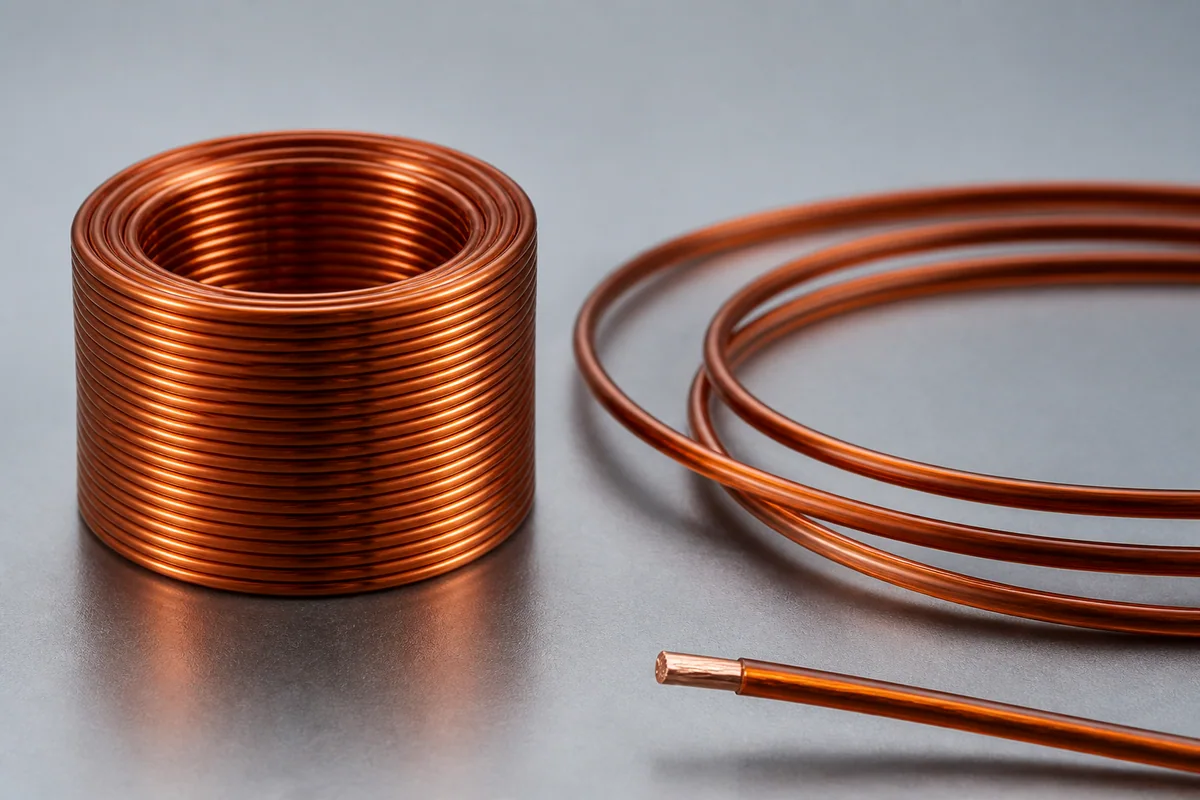

Reference configuration: Engineered fluoropolymer insulation protects copper windings and maintains insulation resistance and breakdown performance in high temperature, high pressure, oil and hydrolysis environments.
View specifications

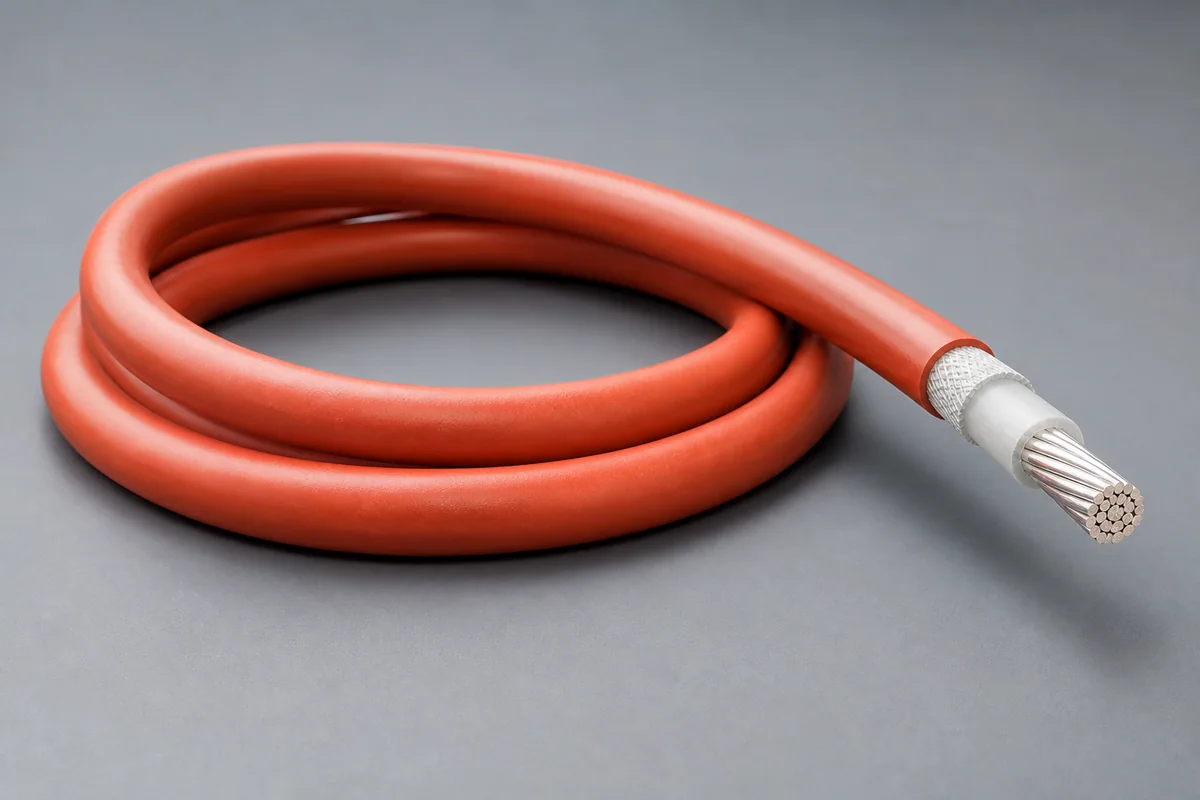

Reference configuration: High-voltage, wide-temperature, low-springback feeder paths for aircraft main power and electrification systems, controlling partial discharge, thermal aging, abrasion and constrained routing.
View specifications

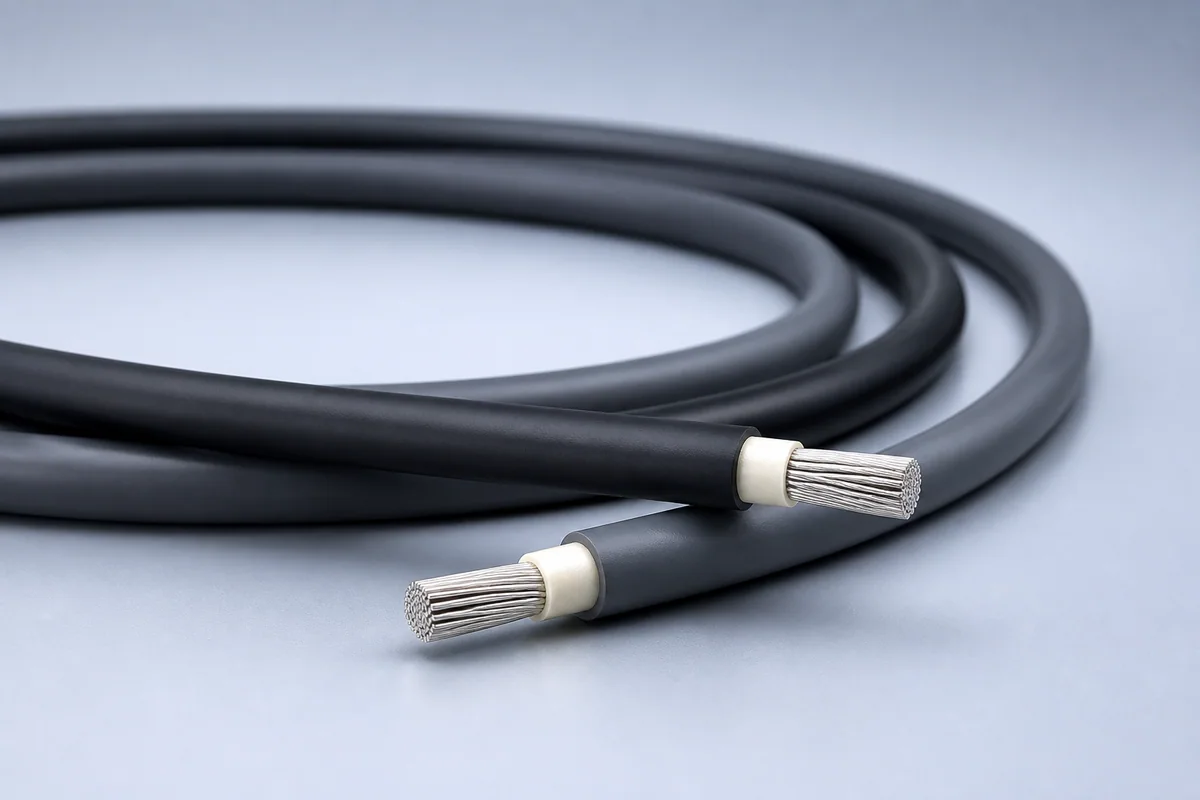

Reference configuration: Conductive or semi-conductive covers continuously drain static charge and provide lightweight, flexible, atomic-oxygen-resistant 600 Vrms power interconnects for moving LEO and GEO systems.
View specifications
Reference configuration: ESCC 3901/025 lightweight GEO cable delivers 600 Vrms power and analog/low-frequency signals with smaller diameter, lower mass and tighter bending.
View specifications

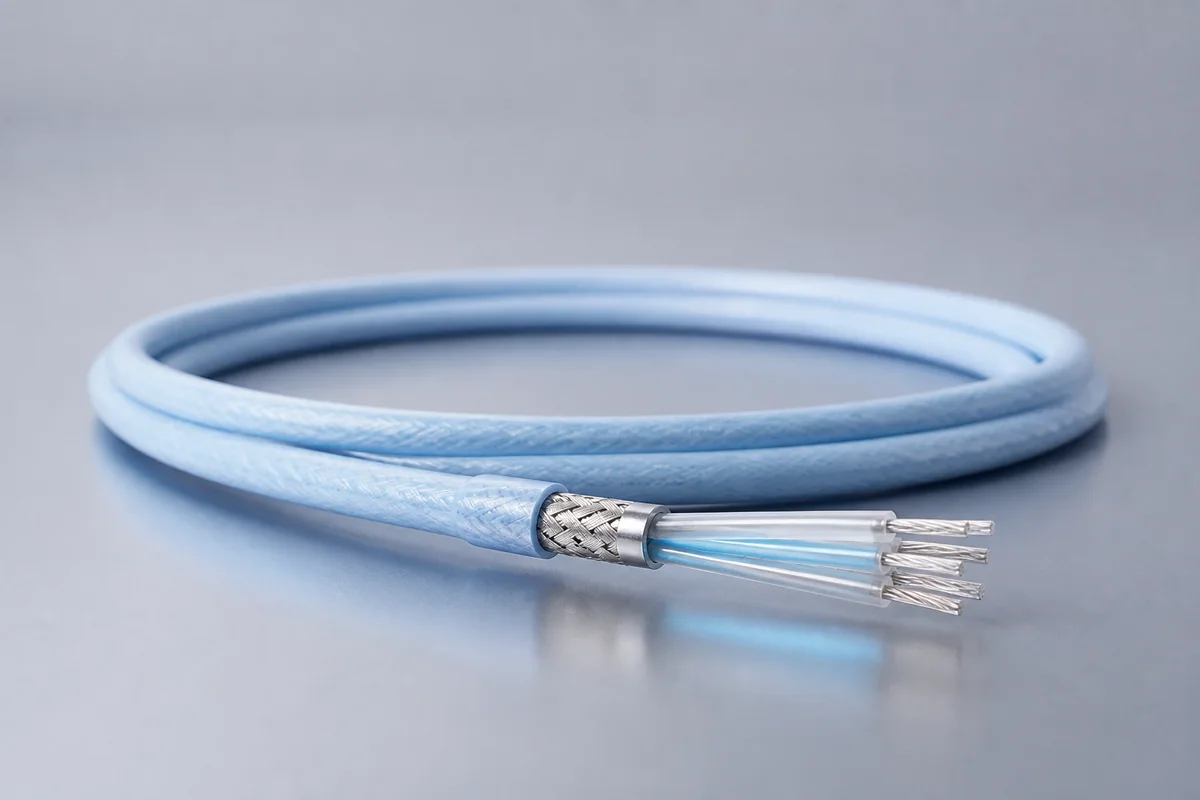

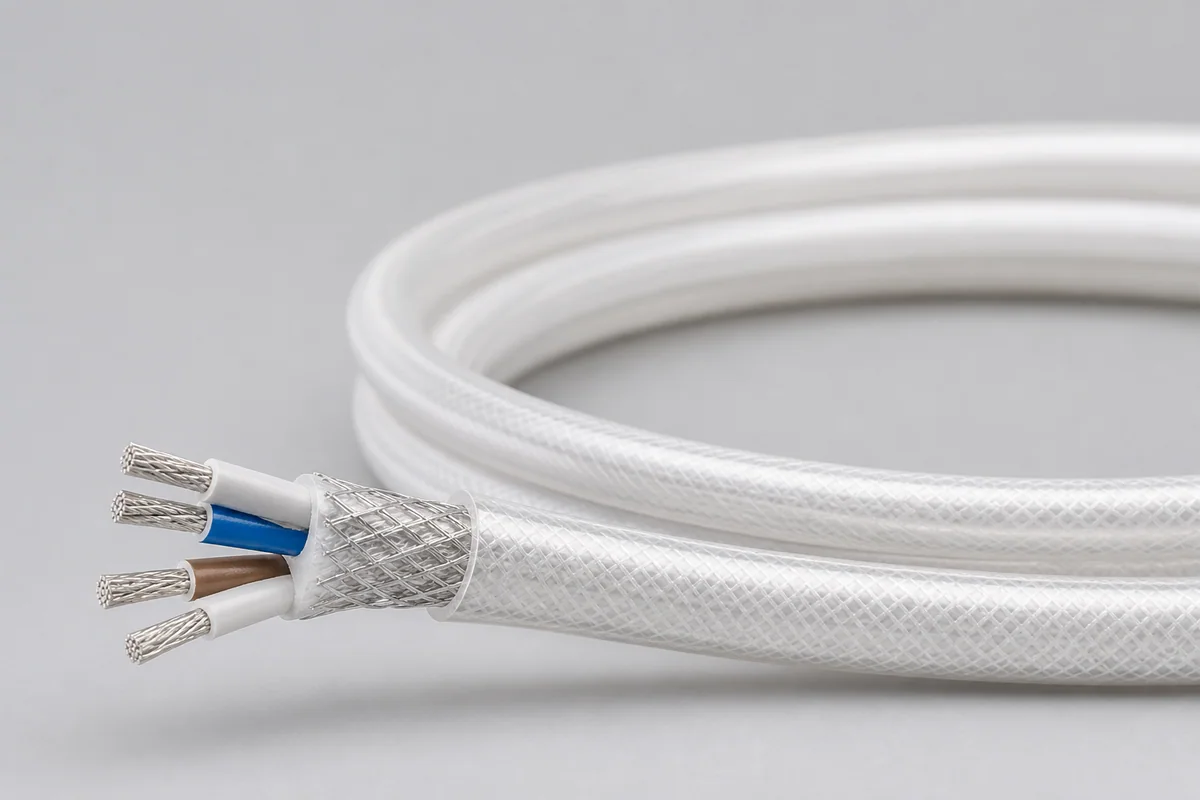

Reference configuration: ePTFE, PTFE and PFA combine in a chemical- and cut-through-resistant, low-springback wide-temperature space cable covering 12–30 AWG and multicore constructions.
View specifications

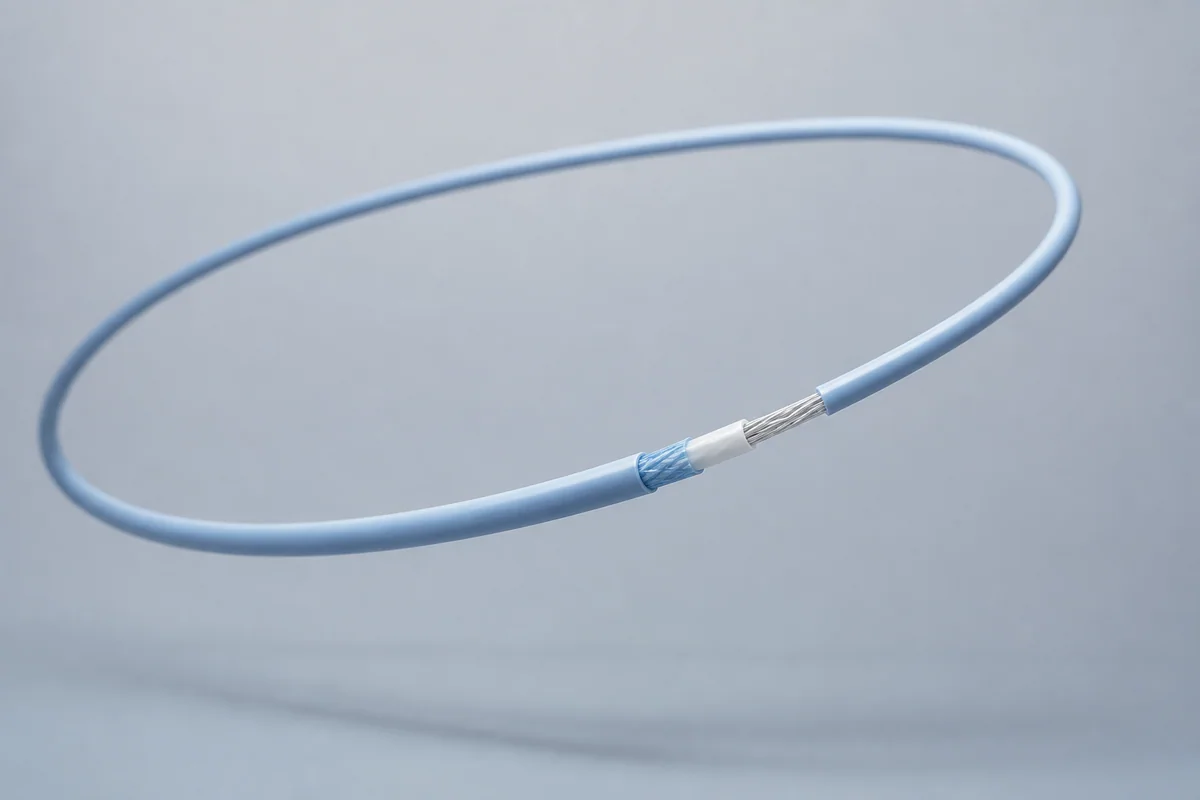

Reference configuration: ESCC 3901/026 lightweight LEO wire is up to 27% smaller and 47% lighter while delivering 600 Vrms power and analog/low-frequency signals.
View specifications

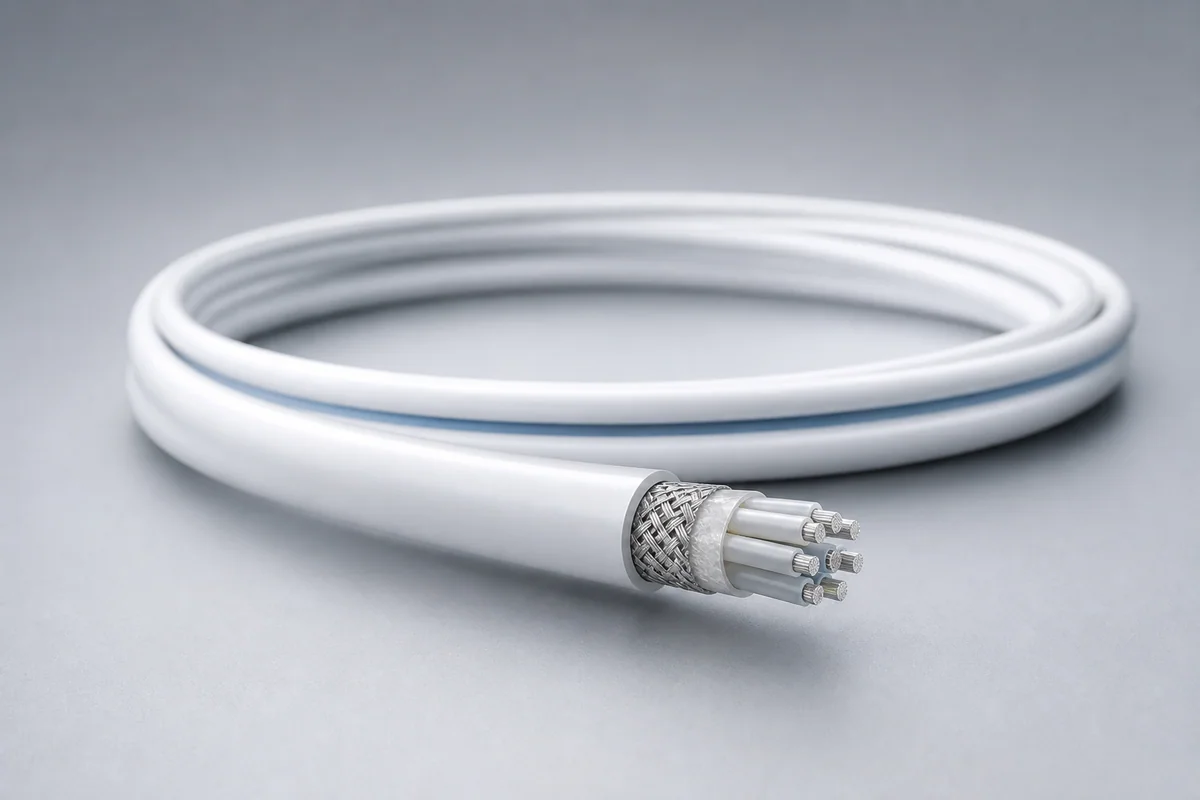

Reference configuration: Thermally stable, chemically inert and atomic-oxygen-resistant materials provide reliable 600 Vrms power and low-frequency signals for manned LEO missions, transfer vehicles and optical instruments.
View specifications

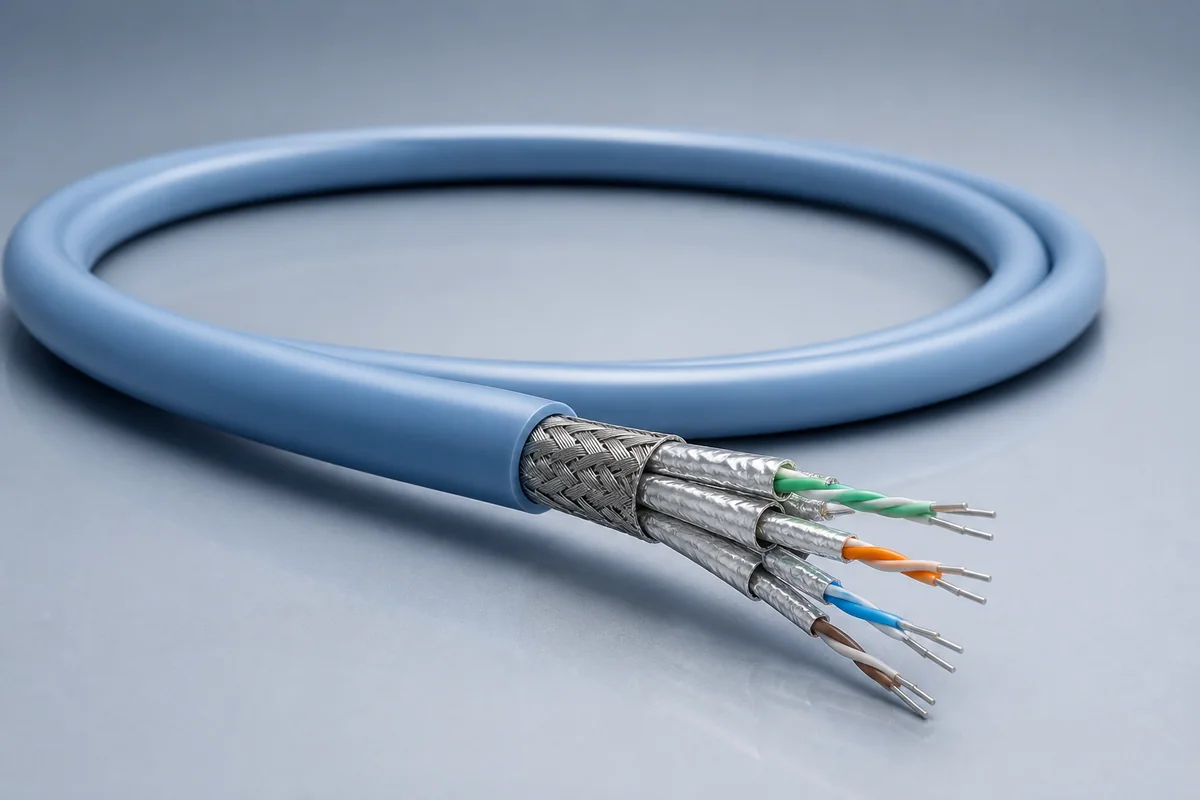

Reference configuration: LVDS serial point-to-point links carry bidirectional data up to 400 Mbps with low crosstalk, loss and skew plus lightweight shielding for critical spacecraft interconnects.
View specifications

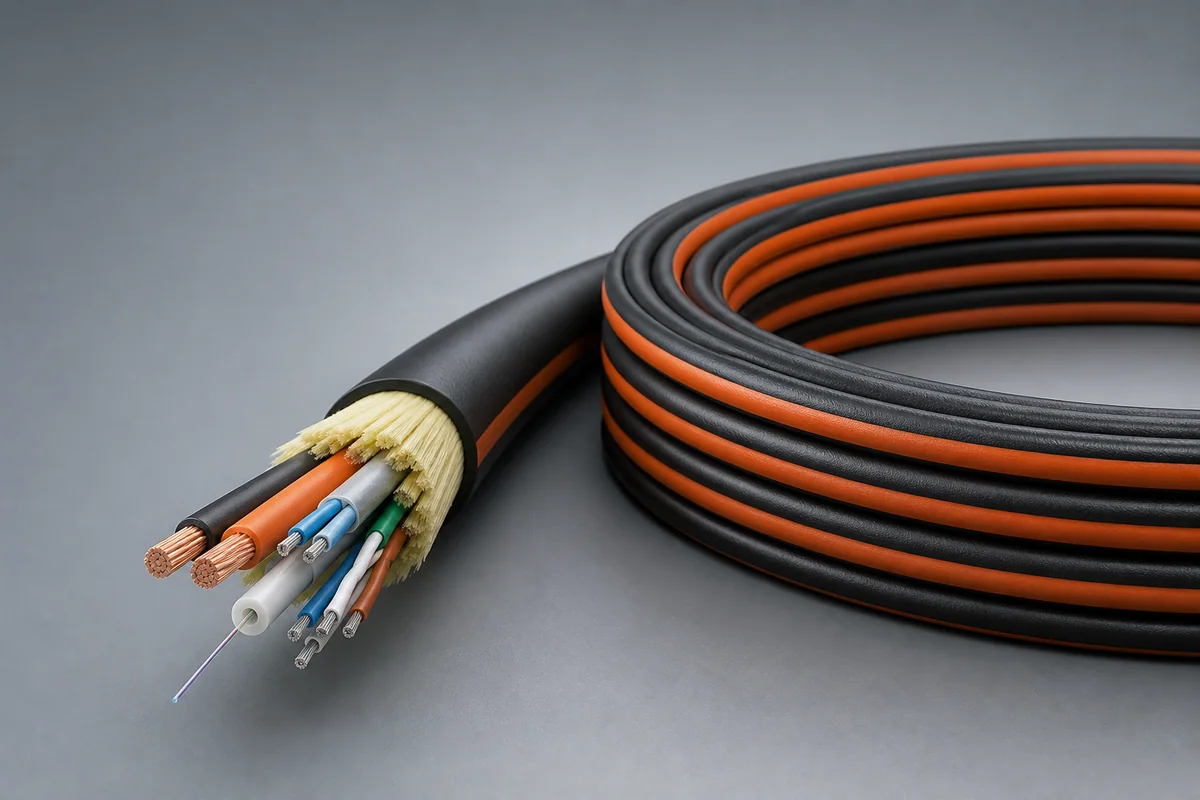

Reference configuration: High-voltage power, data pairs and single-mode fiber are integrated into a low-mass, weatherproof, crush-resistant tether for continuous drone power and secure high-bandwidth communication.
View specifications
